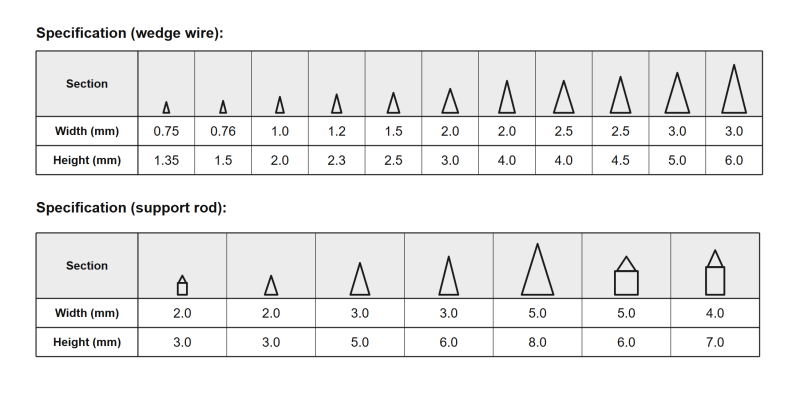

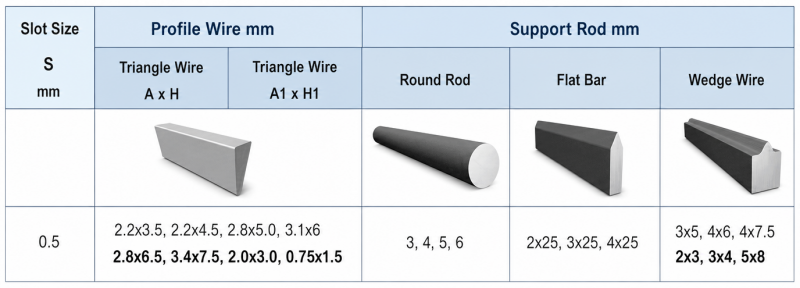

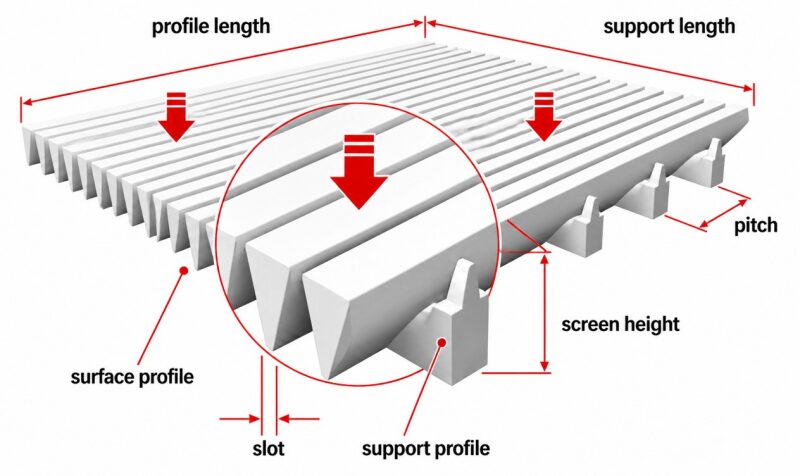

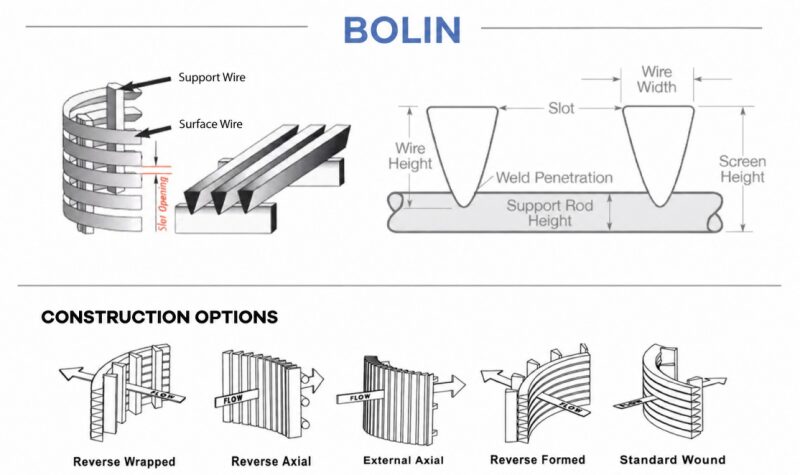

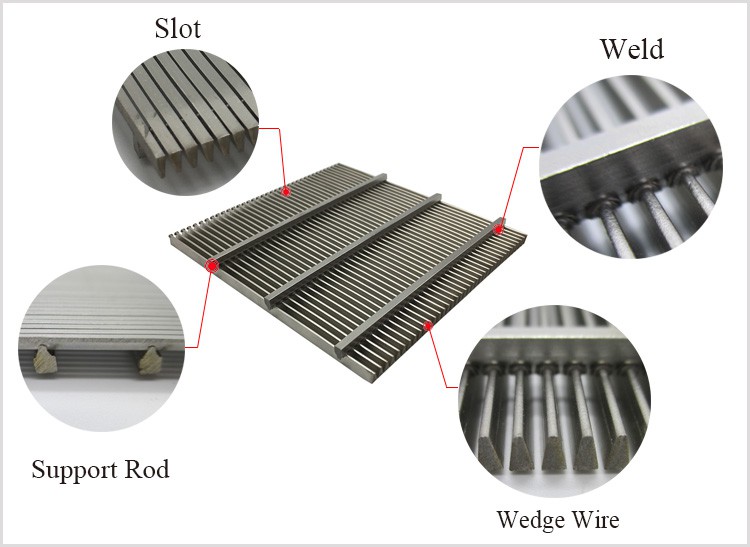

1. Product Description Wedge wire screen — also known as Johnson screen, V-wire screen, or slot tube — is manufactured by spirally winding a V-shaped (wedge) profile wire around longitudinal support rods, welding them at every intersection on an automated machine. The V-shape creates self-cleaning slots that widen inward, preventing clogging and enabling easy backwashing. Bolin supplies wedge wire screens in sheet, plate, tube, and cylinder forms for a wide range of separation and filtration industries. 2. Product Types

Type	Description

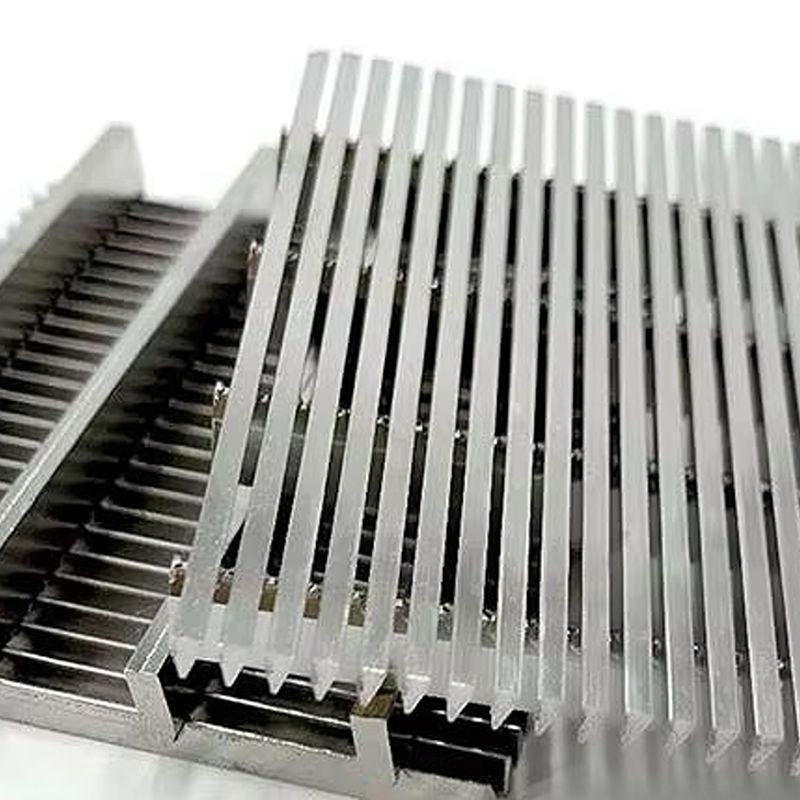

Wedge Wire Screen Panel / Sheet	Flat panels for intake screens, vibrating screens, and filtration systems

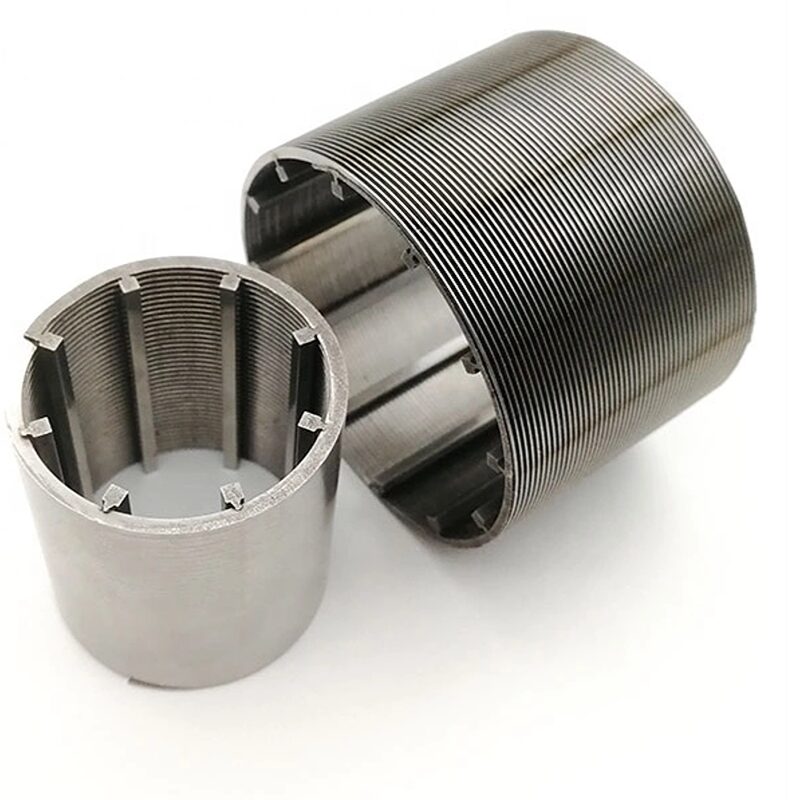

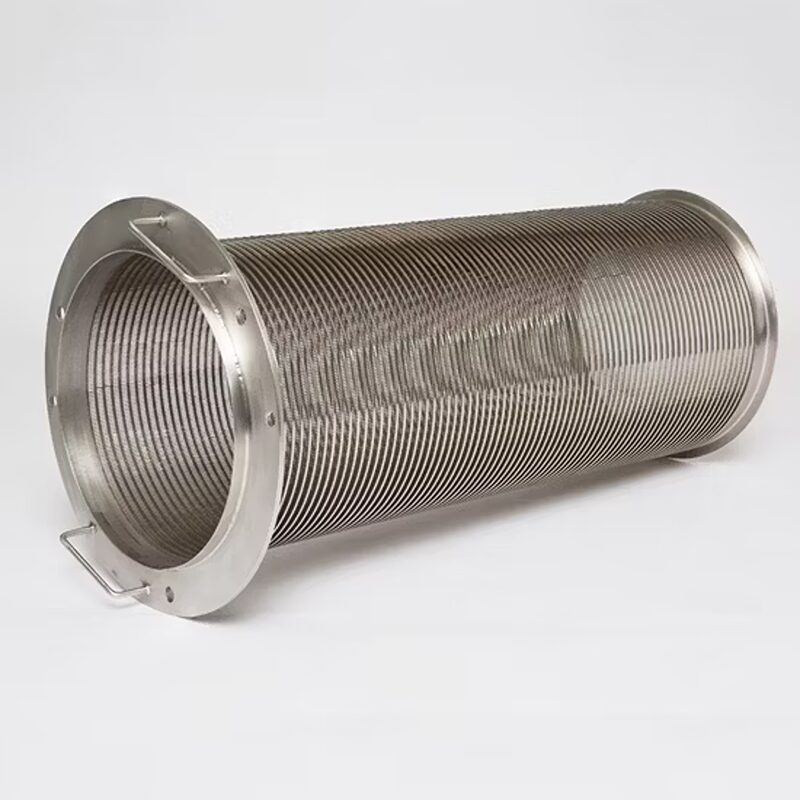

Wedge Wire Screen Tube / Cylinder	Cylindrical slotted tubes for water wells, oil & gas production, centrifuges

3. Key Features • Self-cleaning V-shaped slots: slots widen inward, preventing particle entrapment • High strength and hardness: wear and corrosion resistant, long service life • Uniform slot width: consistent filtration and even liquid distribution • Easy to clean and backwash — low maintenance cost • Maximum process output with minimum downtime • Automated spiral welding: continuous, gap-free weld at every intersection 4. Available Materials Stainless Steel 304 / 316 / 316L / 904L / 2205 / 2507 | Titanium | Hastelloy | Monel (all customisable on request) Size: Width and length up to 6m Slot size： 0.02-2.0mm Wire size ：0.75×1.5mm,1.5×2.5mm 1x2mm,2x3mmm,3x5mm 4x7mm etc Surface treatment ：polishing 5. Applications • Water treatment: intake screens, water well filters, water distribution headers • Oil & gas: production screens, sand control, catalyst support grids • Pharmaceutical and food & beverage filtration • Metallurgy and coal industry screening • Environmental protection: self-cleaning filter elements for industrial effluent • Starch, sugar, and other food-industry fluid filtration 6. Specifications

Parameter	Specification
Other Names	V-wire screen / Johnson screen / wire wrapped screen / slot tube
Materials	304 / 316 / 316L / 2205 / 2507 / Titanium / Hastelloy
Product Forms	Screen plate / flat sheet; screen tube / cylinder
Minimum Slot Width	25 µm (0.025 mm)
Standard Slot Range	0.025 – 3 mm
Tube Diameter Range	25 – 1,000 mm (reference)
Slot Type	Continuous slot (self-cleaning, non-clogging)

Note: All dimensions (diameter, slot width, length, and end connections) are fully customisable to customer drawings.
