1. Product Description Sintered products are high-performance filter media manufactured by laminating multiple layers of woven wire mesh, metal fiber felt, or metal powder, then bonding them through high-temperature vacuum sintering. The result is a rigid, porous metal structure with precise and stable filtration characteristics. Bolin supplies three main types: Sintered Wire Mesh, Sintered Fiber Mesh, and Sintered Powder elements — all fully customisable in material, layer count, dimensions, and filtration rating. 2. Product Types

Type	Description	Typical Application

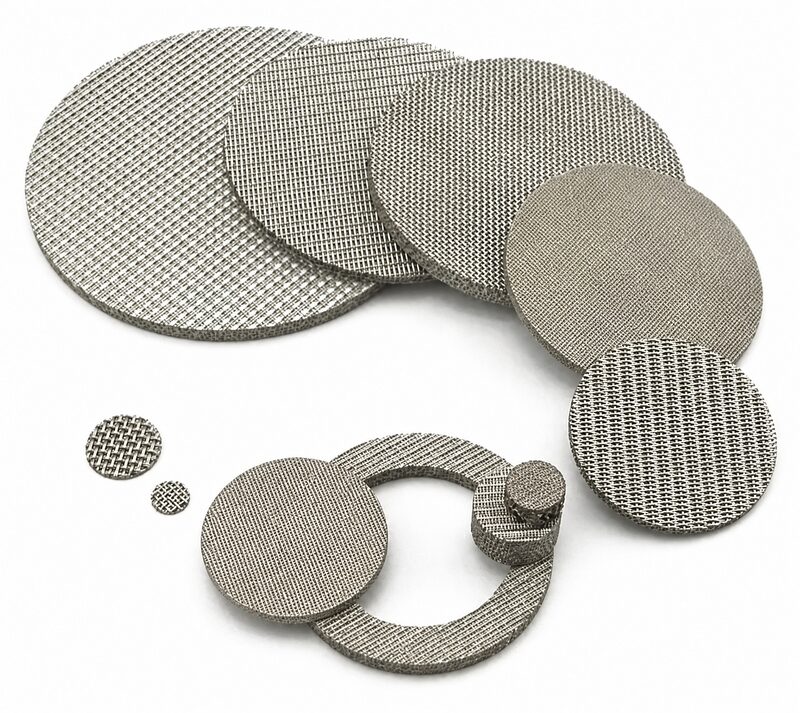

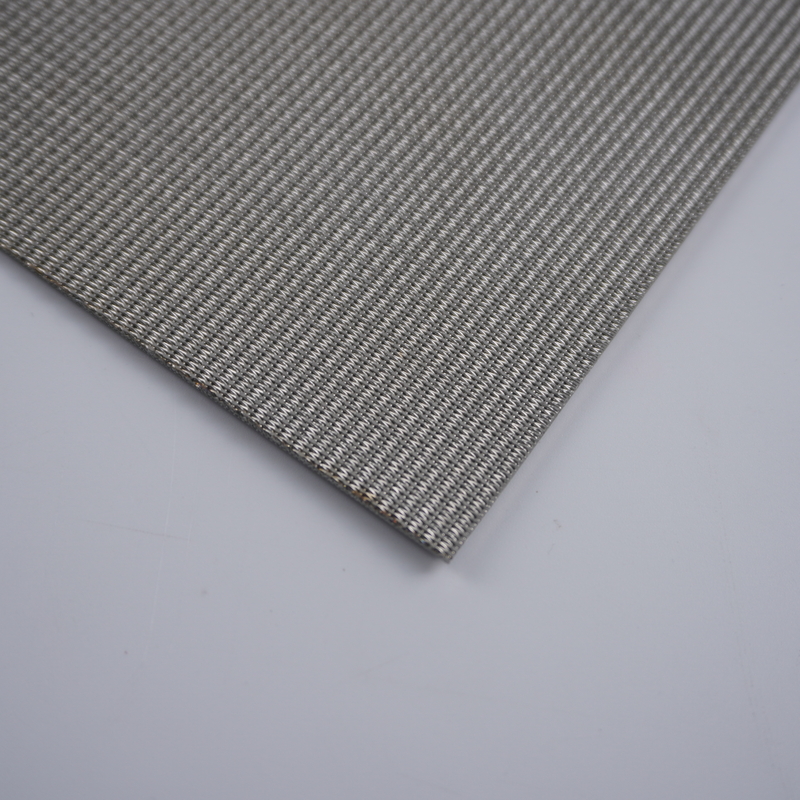

Sintered Wire Mesh	Multi-layer woven mesh sintered into a rigid sheet or tube (2–8 layers)	High-temp filtration, fluid distribution, backwash cartridges

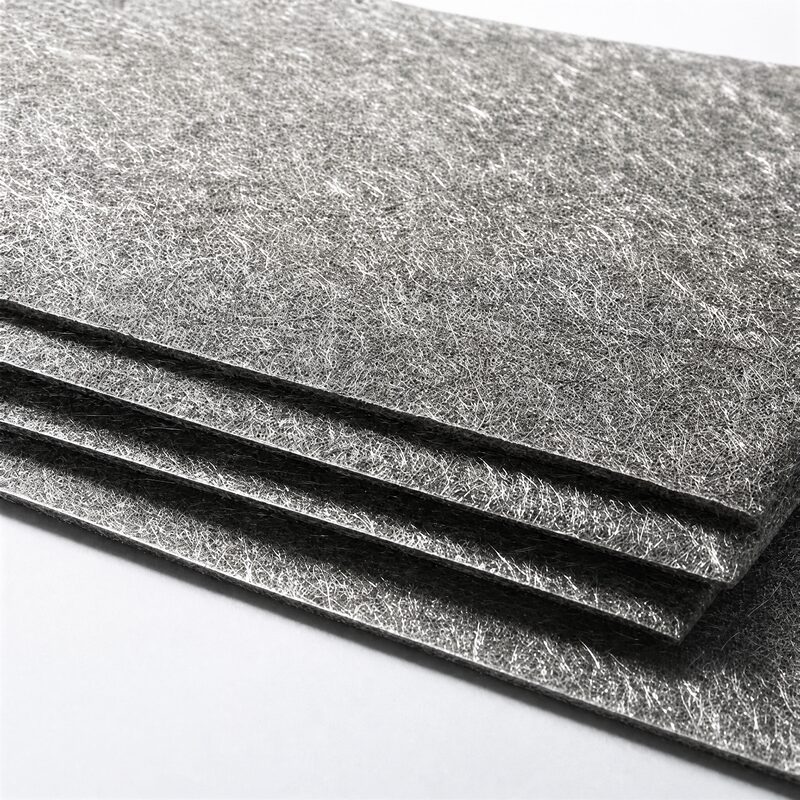

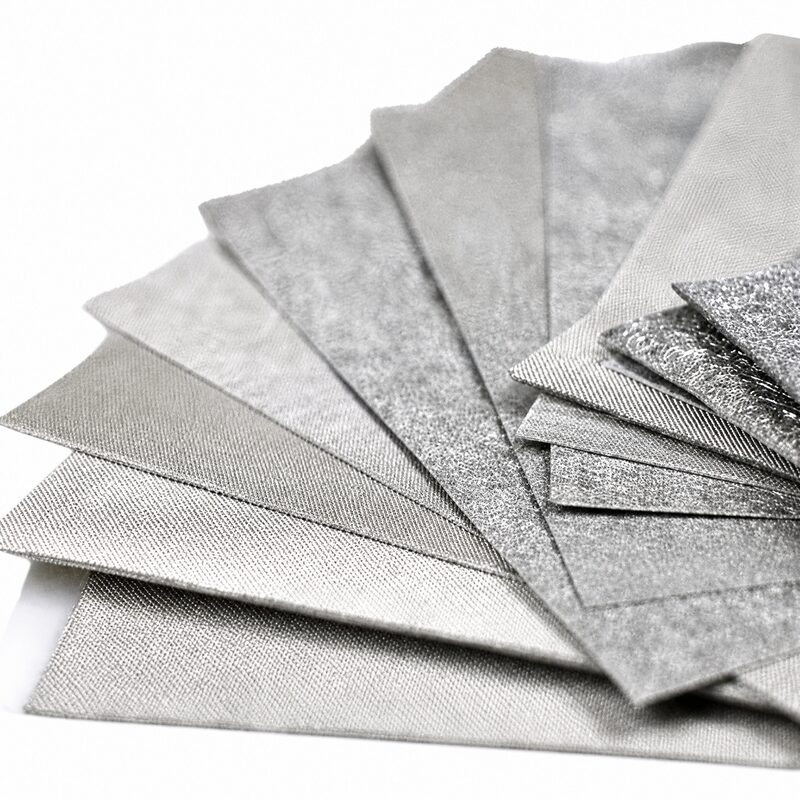

Sintered Fiber Mesh	Metal fiber felt sintered at high temperature; porosity 60–90%, high dirt-holding capacity	Precision filtration, acoustic damping, battery electrodes

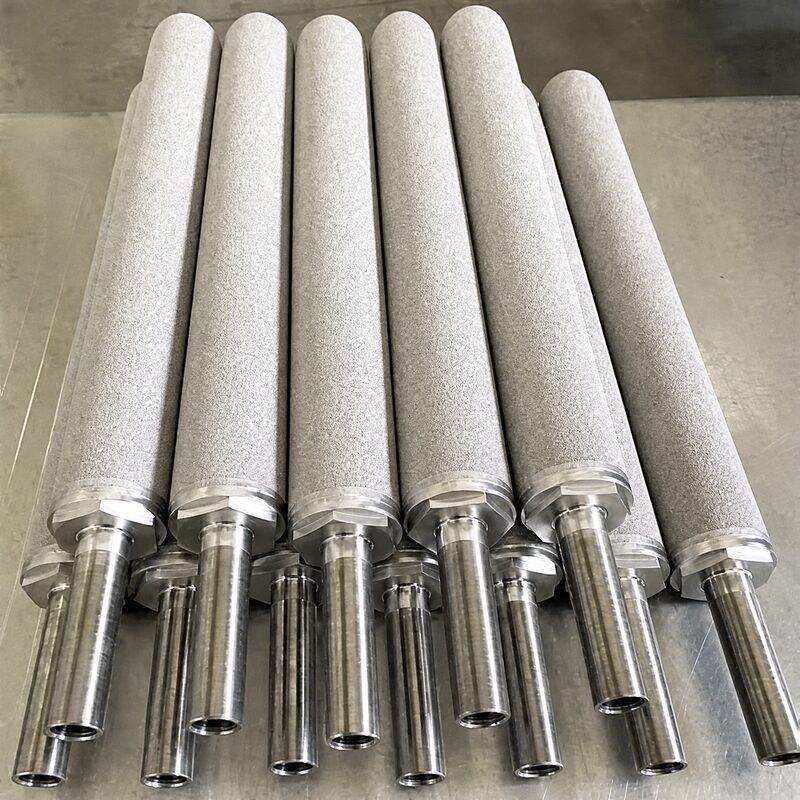

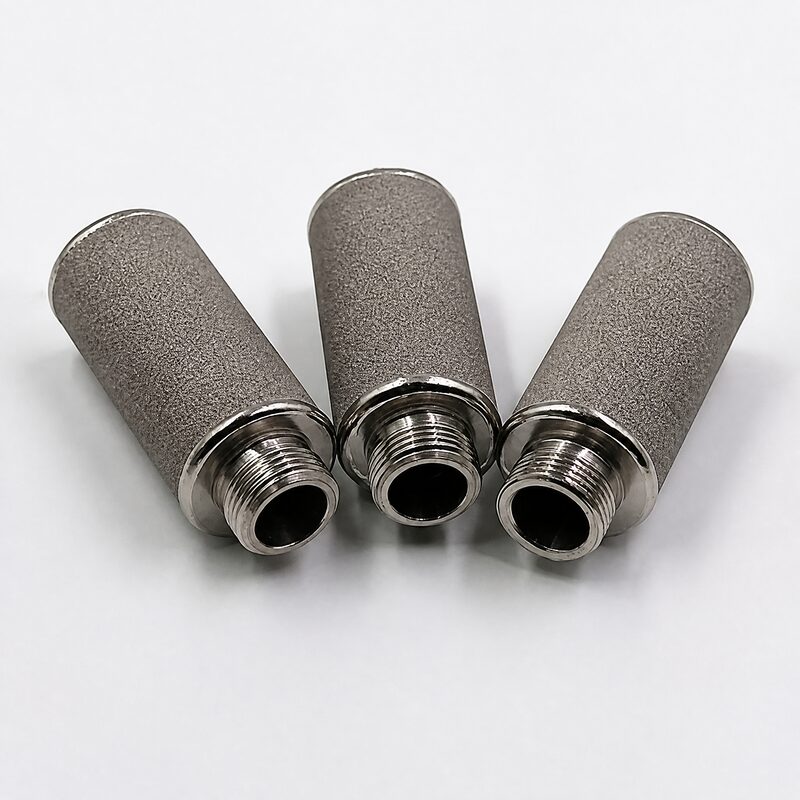

Sintered Powder	Metal powder sintered into porous plate, tube, or custom shapes; uniform controlled pore size	Gas distribution, fine filtration, capillary elements

3. Key Features ● High mechanical strength and rigidity — can be machined, welded, and assembled ● Stable, uniform filtration accuracy throughout service life — pores do not change under use ● Wide operating range: -200°C to +600°C; resistant to acid and alkali environments ● Excellent cleanability: backwash with liquid, ultrasonic, sintering, or baking — long service life ● Available in filtration ratings from 1 µm to 500 µm ● Sintered Fiber Mesh: high porosity (60–90%), low pressure drop, and large dirt-holding capacity 4. Available Materials Stainless Steel 304 / 316L / 310S / 904L / 2205 / 2507 | FeCrAl | Hastelloy | Monel | Titanium | Nickel | Copper (all customisable) 5. Applications ● High-temperature environment: dispersion cooling, gas distribution, fluidised bed wind plates ● High-precision, high-reliability filtration in oil & gas, chemical, and petrochemical industries ● High-pressure backwash oil filters ● Pharmaceutical sterile filtration and food & beverage processing ● Catalyst recovery in chemical reactors ● Polymer and plastic melt filtration 6. Specifications 6.1 Sintered Wire Mesh

Parameter	Specification

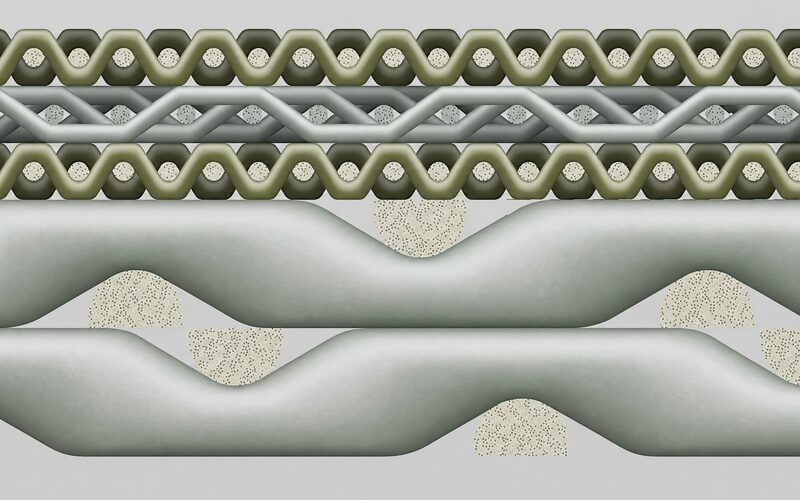

Standard Layer Count & Thickness	5 layers ≈ 1.7 mm; 6 layers ≈ 3.5 mm (custom available)
Standard Sheet Sizes	500×1000 mm / 1000×1000 mm / 600×1200 mm / 1200×1200 mm
Minimum Filtration Rating	1 µm
Filtration Rating Range	1 – 500 µm

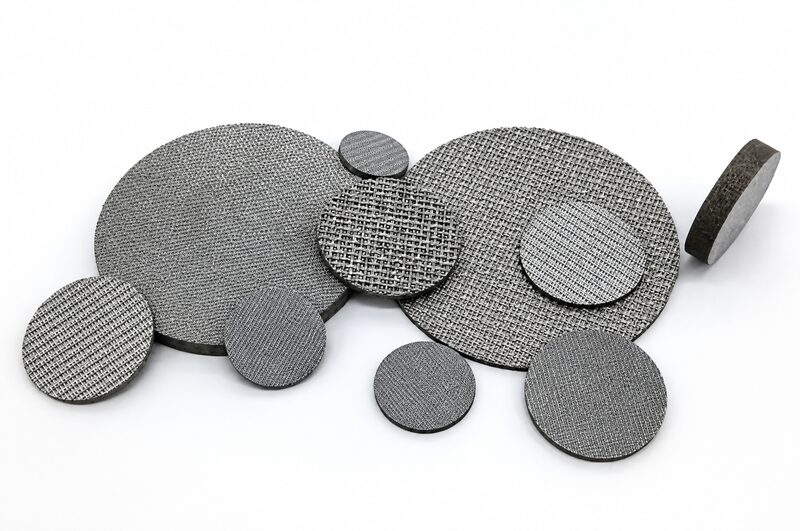

Product Forms	Flat sheet, disc, tube, cartridge

6.2 Sintered Fiber Mesh (Reference)

Parameter	Reference Range
Filtration Rating	3 – 100 µm
Porosity	60 – 90%
Thickness	0.3 – 3 mm (multi-layer composite available)

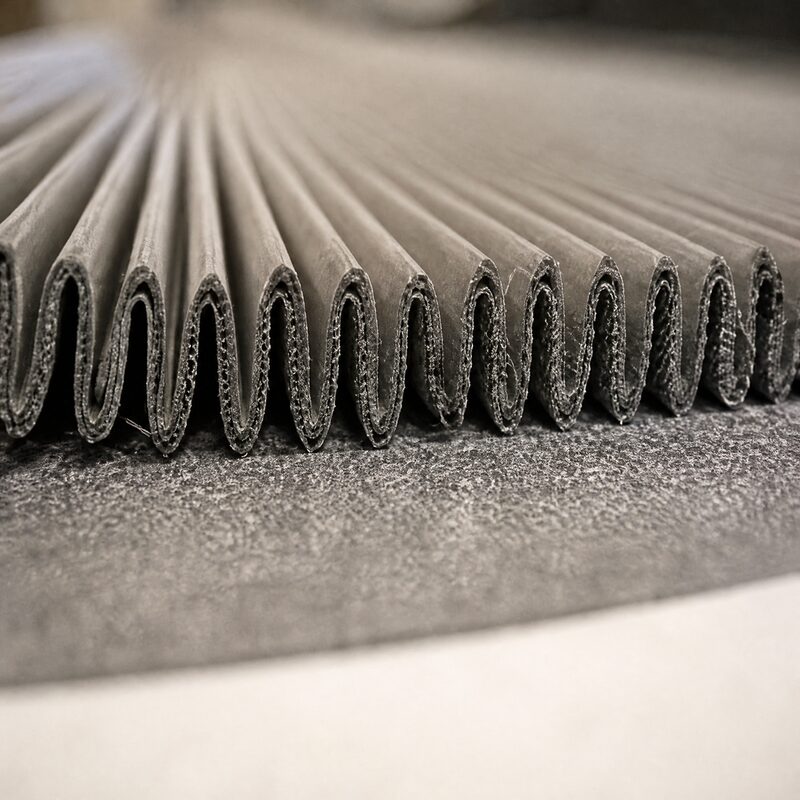

Forms	Felt roll, stamped disc, pleated filter element

Note: All parameters above are standard references. Specifications subject to factory confirmation.
