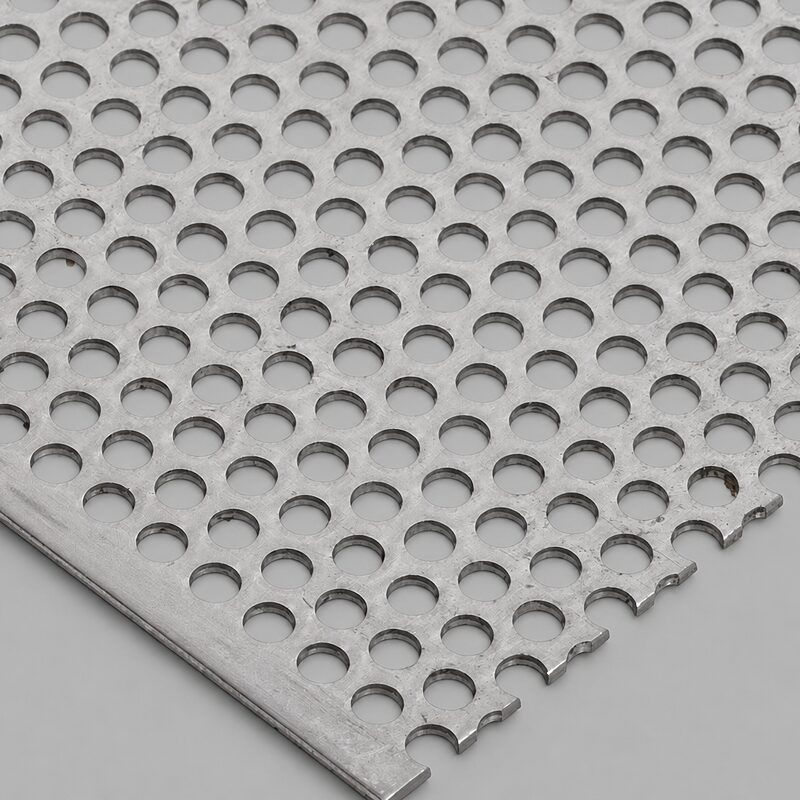

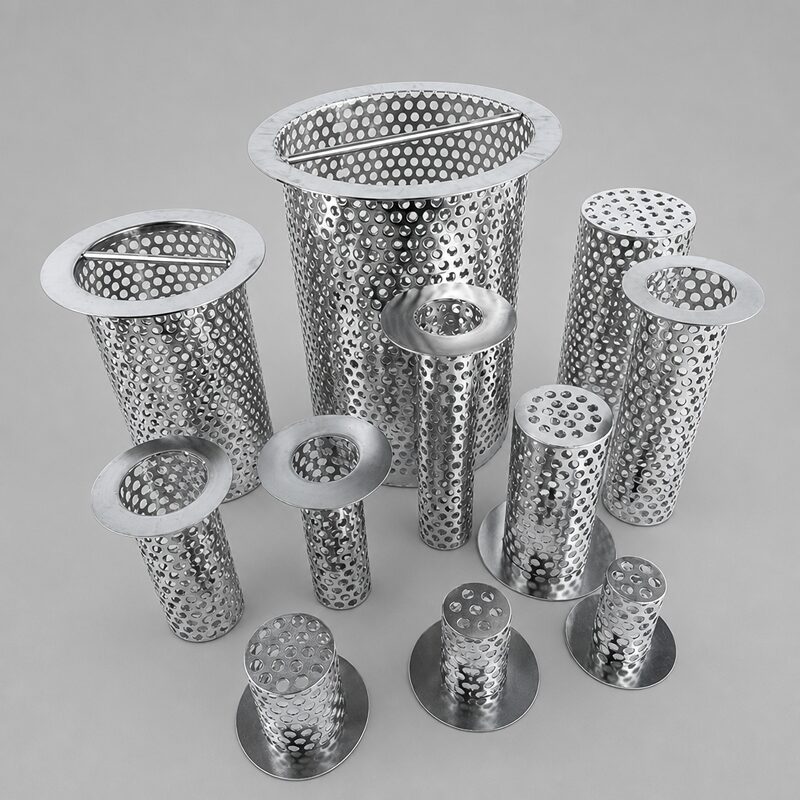

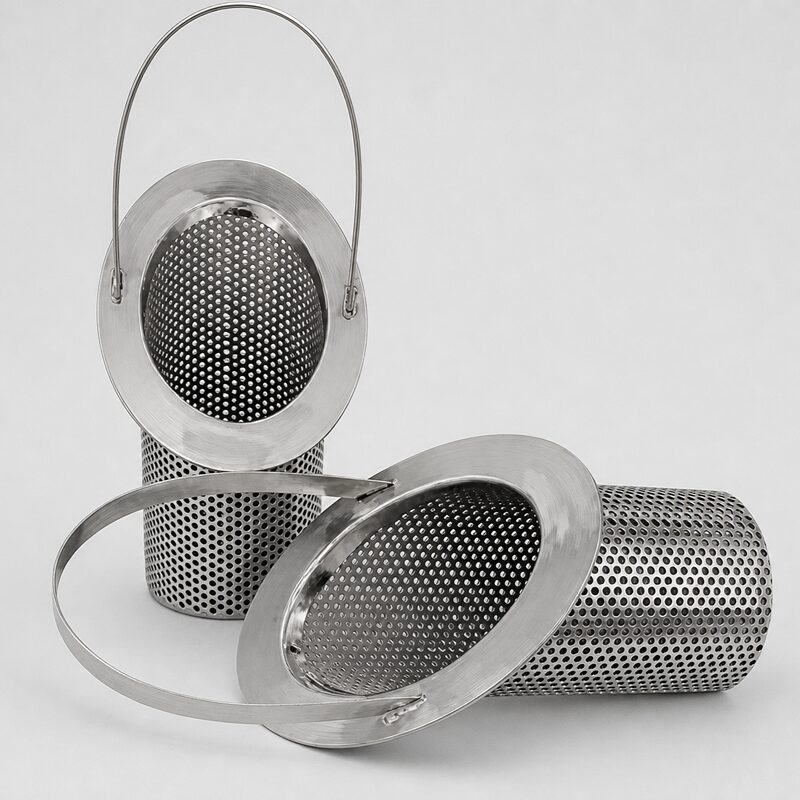

1. Product Description Perforated mesh is manufactured by punching a uniform pattern of holes — round, square, slotted, or decorative — into flat metal sheet or strip. The holes are arranged in staggered or straight-line layouts with precise, consistent openings and controlled open areas. Bolin supplies perforated sheets, coils, and perforated tubes in stainless steel and other metals for filtration, screening, acoustic, architectural, and machinery applications. 2. Available Materials Stainless Steel 304 / 316 / 316L / 2205 | Carbon steel | Galvanised steel | Aluminium | Copper | Titanium | Surface treatment options: acid-pickled, polished, powder-coated 3. Key Features •Precise, uniform perforation: stamping process ensures consistent hole size and spacing •Controllable open area: hole size and pitch designed to balance flow rate and structural strength •High strength: formed from a single solid sheet — no joints •Wide hole shape selection: round holes, square holes, slotted holes, fish-scale, and decorative patterns •Deep-processing capability: can be cut, bent, roll-formed into perforated tubes, filter baskets, and guards 4. Applications •Filtration and screening: filter plates, cartridge support cores, grain sieves •Architecture: curtain wall cladding, acoustic panels, suspended ceilings, balustrades •Machinery: protective guards, ventilation covers, heat dissipation panels •Mining and grain processing: vibrating screens, sizing screens •Food processing: baking trays, conveyor belts, drying racks •Acoustics: silencer baffles, noise barriers, acoustic enclosures 5. Specifications (Reference — confirm with factory) 5.1 Perforated Sheet

Parameter	Reference Range
Hole Diameter	0.5 – 100 mm
Sheet Thickness	0.3 – 12 mm
Open Area	15% – 60% (varies with hole size and pitch)
Hole Shape	Round, square, slotted, fish-scale, decorative
Arrangement	Staggered (60°) or straight-line
Standard Sheet Size	1×2 m / 1.22×2.44 m / coil (custom available)

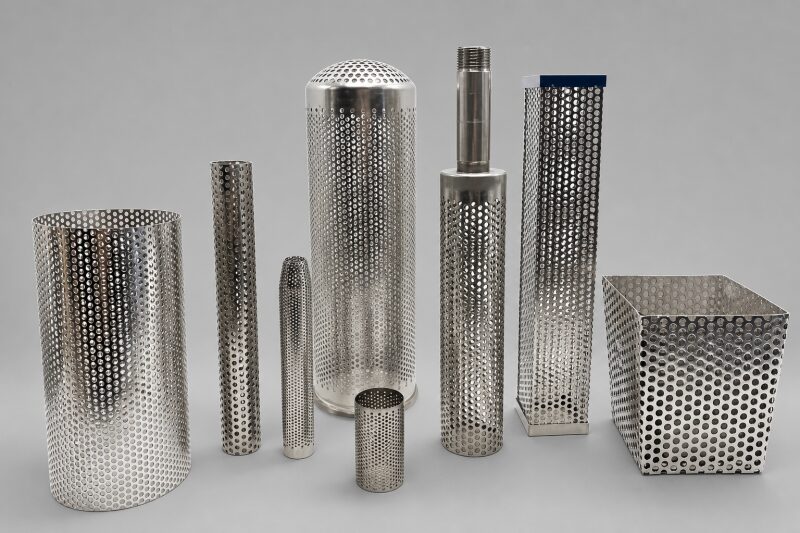

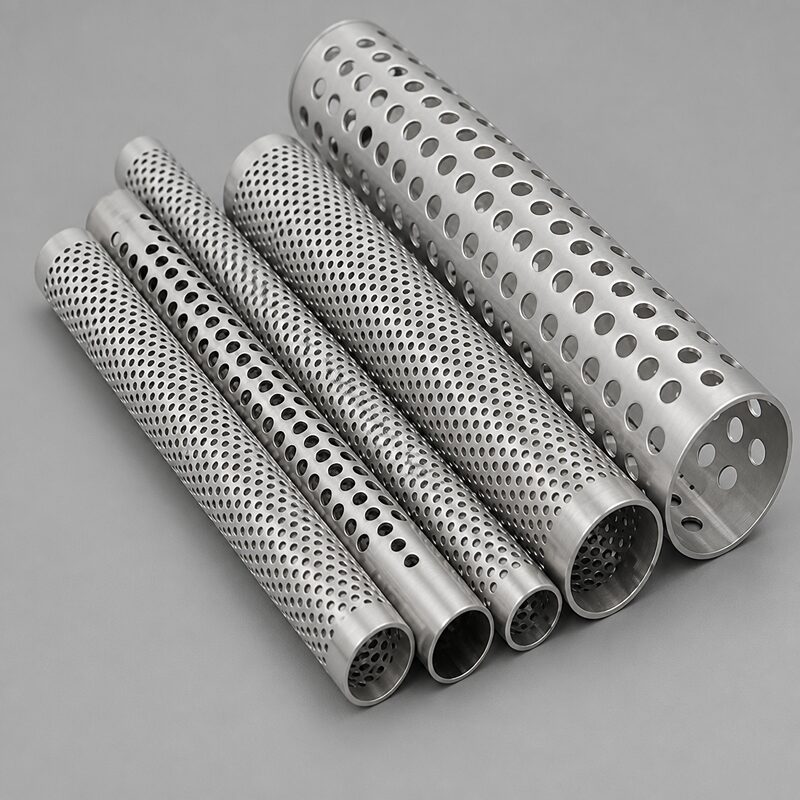

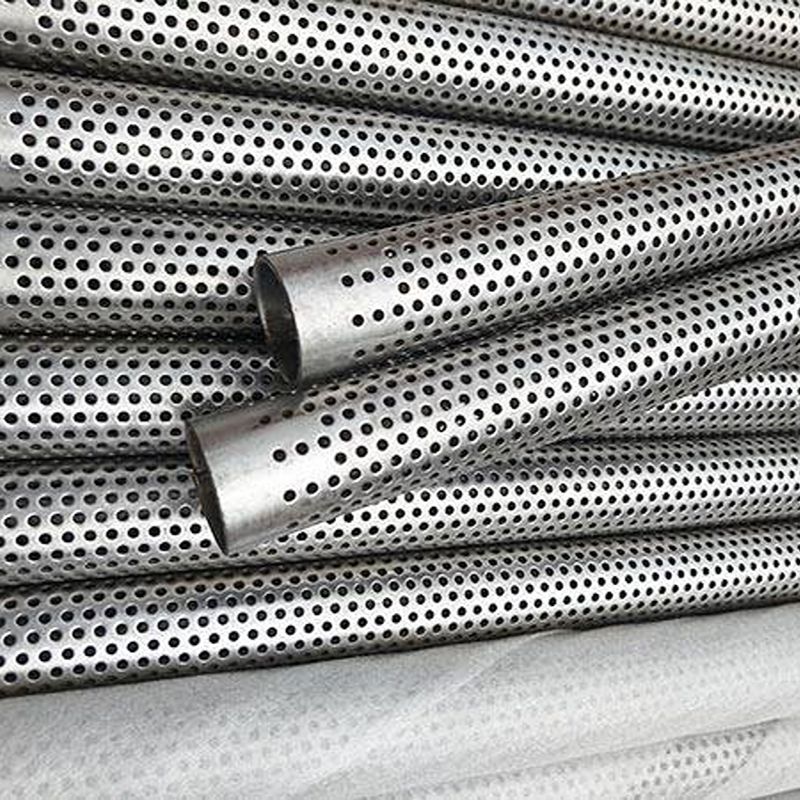

5.2 Perforated Tube

Parameter	Reference Range
Outer Diameter	20 – 600 mm
Wall Thickness	0.5 – 5 mm
Perforation Diameter	0.5 – 6 mm

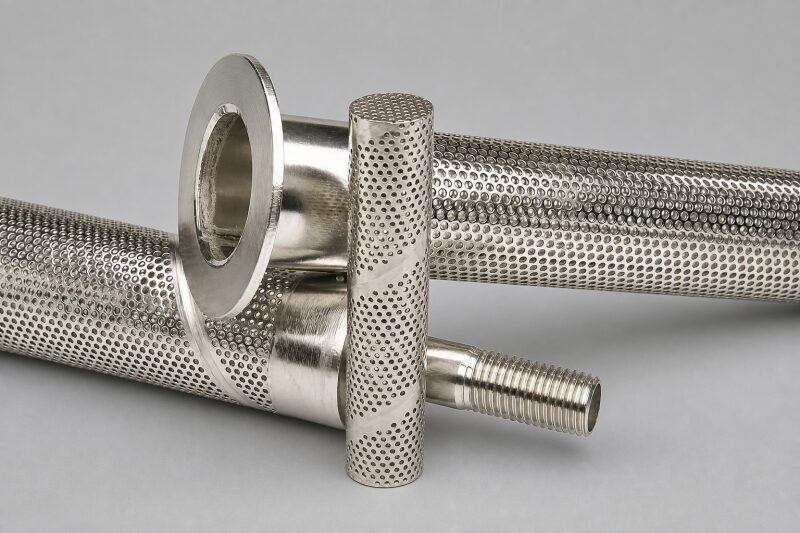

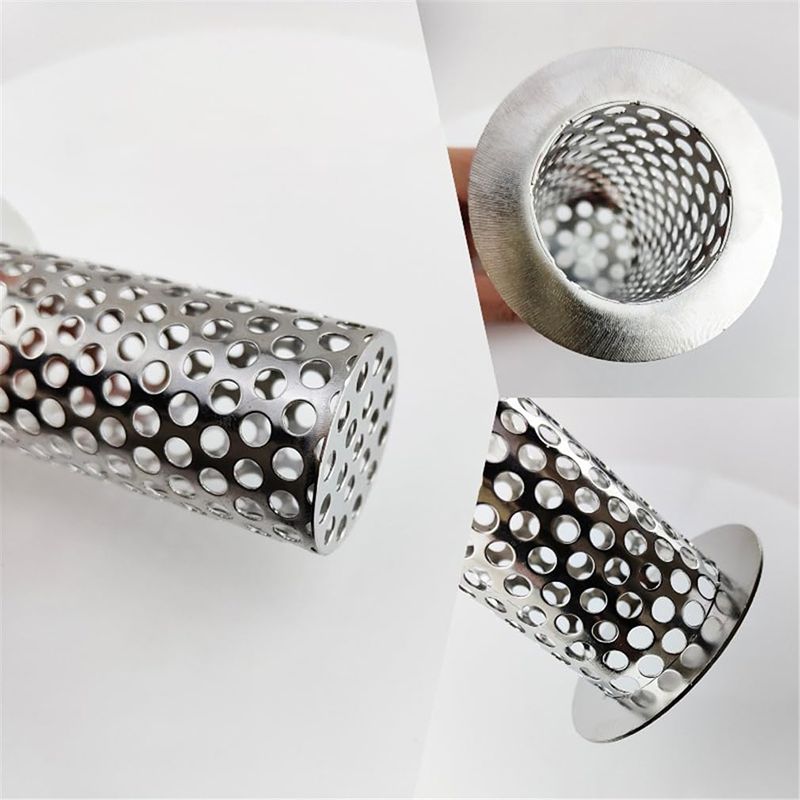

Forms	Round tube, square tube, custom profiles with flanges or end caps

Note: Product photography of perforated sheet and tube samples is recommended — please supplement from factory or product library. All specifications subject to factory confirmation.
