1. Company Profile & Product Overview Anping County Bolin Metal Wire Mesh Co., Ltd. is a specialised manufacturer and exporter of metal wire mesh products, headquartered in Anping County, Hebei Province — the world-renowned centre of the wire mesh industry. With years of experience serving architectural, industrial and construction markets, Bolin supplies decorative metal mesh solutions to architects, interior designers, builders and project contractors worldwide. Decorative metal mesh transforms the way space, light and texture interact. Made from stainless steel, aluminium, brass, copper and galvanised steel, our mesh products combine architectural beauty with engineered performance. Each product family is tailored to a specific function while preserving a consistent design language across the project. This catalogue presents our decorative mesh programme in four product families: • Curtain Wall / Façade Decorative Mesh — wide-span woven cable mesh and fine woven mesh for building exteriors, balancing daylight with solar shading. • Interior Mesh Curtains & Room Dividers — flexible metal fabrics for space division and lighting-art effects, installed as sliding, fixed or hanging systems. • Ceiling & Suspended Mesh — lightweight expanded or woven mesh for open, layered ceiling aesthetics. • Staircase / Elevator Protection Decorative Mesh — high-strength cable mesh or welded mesh that combines safety guarding with decorative appeal. 2. Curtain Wall / Façade Decorative Mesh Product Description Curtain wall decorative mesh is the architect’s tool for giving building envelopes a distinctive identity. Manufactured as wide-span woven cable mesh or dense fine woven mesh, it is tensioned over or in front of the façade to create a continuous metal skin. The mesh modulates daylight, reduces solar heat gain and provides a controlled level of visual privacy, while preserving outward views and natural ventilation. It is equally at home on landmark towers, cultural buildings, transport hubs and retail destinations. Product Types • Wide-Span Woven Cable Mesh — stainless steel wire ropes woven into large apertures; supplied in wide rolls and tensioned on site. Ideal for multi-storey curtain walls and large-scale screens. • Fine Woven Mesh Panels — dense plain or twill woven mesh in sheet or panel form for façades requiring a finer texture and higher shading performance. • Custom Pattern Perforated Panels — laser-precise perforated metal panels with bespoke patterns (round, square, slotted and graphic designs) for signature façade statements. Specification Table

Parameter	Wide-Span Cable Mesh	Fine Woven Mesh
Material	SS304 / SS316 / SS316L	SS304 / SS316, Aluminium, Brass
Rope / Wire diameter	2.0 – 8.0 mm (1×19 / 7×19 rope)	0.8 – 3.0 mm
Aperture	25×25 – 200×200 mm	3×3 – 50×50 mm
Open area	65 – 85 %	30 – 70 %
Width	1.0 – 6.0 m (seamed panels on request)	1.0 – 3.0 m
Length	Custom rolls up to 50 m	Custom sheets / rolls
Finish	Mill, powder coated, PVDF	Brushed, painted, anodised

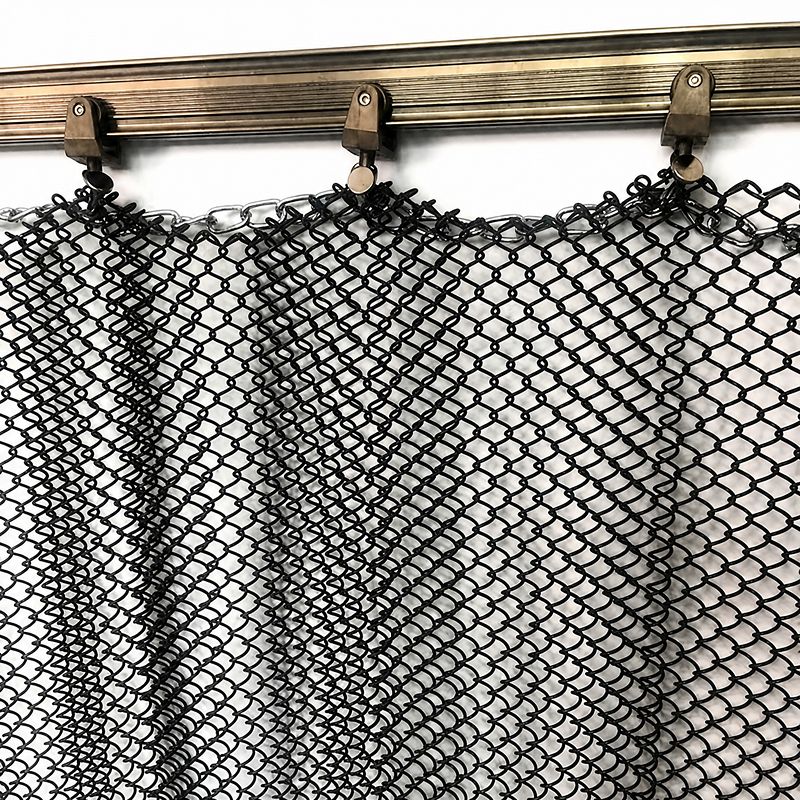

Applications • Building façades and curtain wall infill panels • Sun-shading and solar-control screens • Balcony, terrace and podium screens • Landscape and street furniture screens • Airport, station and convention-centre exteriors Key Features • Superior weather resistance — 316-grade stainless available for coastal and industrial atmospheres • Daylight transmission with effective solar shading and glare control • High tensile strength with engineered wind-load performance • Non-combustible, meeting building fire-safety requirements •Low maintenance and long service life; fully recyclable for green-building credits 3. Interior Mesh Curtains & Room Dividers Product Description Interior mesh curtains are flexible metal fabrics that divide space without closing it in. Woven from fine stainless steel, brass, copper or aluminium wire, the fabric can be installed as a fixed partition, a sliding curtain on a ceiling track, or a hanging drape. Its semi-transparent structure diffuses light beautifully, casting soft shadow patterns across floors and walls, and turns ordinary lighting into a sculptural feature. Interior mesh is a favourite of designers for lobbies, restaurants, retail interiors and corporate workplaces. Product Types • Fine Woven Metal Fabric — plain, twill or dutch weaves in square or rectangular apertures; flexible and drapable. • Rib / Flat-Wire Weave — flattened wire profiles create a refined, textured surface with enhanced rigidity for panels. • Double-Wire Weave — paired wires produce a denser, decorative weave with a distinctive visual rhythm. Specification Table

Parameter	Specification
Material	SS304 / SS316, Brass, Copper, Aluminium
Wire diameter	0.3 – 2.0 mm
Aperture	0.5×0.5 – 12.7×12.7 mm
Open area	35 – 75 %
Sheet / roll width	915 / 1220 / 1524 mm (up to 2500 mm)
Length	2000 mm sheets; custom rolls
Installation	Sliding ceiling track, fixed frame, or hanging rods
Finish	Mill, antique brass, brushed, painted

Applications • Hotel lobbies, atriums and restaurant partitions • Office space dividers and meeting-room screens • Retail displays and window dressing • Cabinet and joinery fronts • Lighting-art installations and feature walls Key Features • Semi-transparent fabric balances privacy with openness and sightlines • Diffuses and transforms light for dramatic shadow and glow effects • Flexible installation — sliding, fixed or draped to suit any layout • Lightweight yet durable; simple to clean and maintain • Wide material choice (stainless, brass, copper, aluminium) for interior colour schemes 4. Ceiling & Suspended Mesh Product Description Ceiling and suspended mesh creates the illusion of space — a light, open canopy that lets services, ductwork and structure read through a veil of metal. Manufactured as lightweight expanded metal mesh or woven mesh, it is installed flat or in gently curved forms beneath the structural ceiling. The result is a layered, airy interior with excellent acoustic and lighting behaviour, widely used in retail environments, transport terminals, car parks, and large public interiors. Product Types • Expanded Metal Mesh — slit-and-stretched sheets in diamond or hexagonal openings; rigid, lightweight and economical. • Woven Mesh Canopies — fine or medium woven mesh tensioned in panels for a smooth, uniform surface. • Curved / Formed Panels — mesh pre-formed into radii for wave ceilings and sculptural canopies. Specification Table

Parameter	Expanded Metal Mesh	Woven Mesh
Material	Aluminium, SS304 / SS316, Galvanised steel	Aluminium, SS304 / SS316
Strand / Wire thickness	0.3 – 3.0 mm (sheet)	0.5 – 3.0 mm (wire)
Aperture (SWD×LWD)	5×12 – 100×200 mm	6×6 – 50×50 mm
Open area	40 – 70 %	40 – 70 %
Panel size	Up to 2400×1200 mm	Up to 2500 mm wide
Finish	Mill, powder coated, PVDF	Mill, anodised, painted

Applications • Suspended ceilings and atrium canopies • Retail and shopping-mall ceilings • Car-park and underpass ceilings • Exhibition halls and auditoriums • Acoustic ceiling systems with backing insulation Key Features • Ultra-lightweight construction reduces structural loading and installation cost • Open, layered appearance creates depth and a sense of height • Compatible with integrated lighting, HVAC and sprinkler services • Effective sound absorption when combined with acoustic backing • Flexible forming — flat, curved and wave profiles available 5. Staircase / Elevator Protection Decorative Mesh Product Description Protection does not have to mean obstruction. Staircase and elevator decorative mesh is engineered from high-strength cable mesh or welded mesh to deliver robust guarding — fall protection, impact resistance and access prevention — while preserving transparency and an elegant appearance. It is used for stair balustrades, mezzanine and atrium guardrails, elevator car walls and lift doors, escalator cladding and machine-room screening, combining safety compliance with a refined architectural finish. Product Types • Welded Mesh Panels — rigid panels of welded stainless or galvanised wire; strong, flat and easy to frame. • Wire Rope / Cable Mesh — flexible high-tensile rope mesh tensioned between posts; ideal for curved or large-span guarding. • Fine Mesh Infills — dense woven or perforated infill for balustrade glass-replacement and full-height screening. Specification Table

Parameter	Welded Mesh	Wire Rope / Cable Mesh
Material	SS304 / SS316, Galvanised steel	SS304 / SS316 (1×19 / 7×19)
Wire / Rope diameter	2.0 – 6.0 mm	3.0 – 8.0 mm
Aperture	25×25 – 100×100 mm	50×50 – 150×150 mm
Open area	60 – 80 %	70 – 85 %
Panel size	Custom, up to 3000×1500 mm	Custom, seamed to size
Compliance	BS EN ISO 14122 / AS 1657 guarding	AS 1657 / local fall-protection codes

Applications • Staircase balustrades and handrail infills • Elevator car walls, doors and escalator cladding • Mezzanine, platform and atrium guardrails • Lift-shaft and machine-room screening • Playground and public-space safety screening Key Features • High tensile strength and impact resistance for safety-critical guarding • Compliant with international guarding and fall-protection standards • Transparent guarding maintains sightlines and natural light • Rigid or flexible formats suit straight, curved and irregular geometries • Vandal-resistant, corrosion-protected and easy to maintain 6. Surface Finishes & Customisation The right finish protects the mesh and defines its character. Bolin offers a full range of surface treatments to match the project environment and design intent:

Finish	Description
Mill / natural	Clean factory finish; stainless and aluminium suitable for most interiors
Brushed / satin	Linear grain texture on stainless steel; soft, premium appearance
Powder coating	Durable RAL-colour coating for exteriors and interiors; wide colour choice
PVDF fluorocarbon	Long-life architectural coating with superior UV and weather resistance
Anodising (aluminium)	Protective oxide layer in clear or coloured tones
Hot-dip galvanising	Heavy corrosion protection for welded and carbon-steel meshes
Antique / patina (brass)	Pre-aged surface that develops a characterful patina over time

Customisation includes bespoke apertures, wire and rope diameters, panel dimensions, curved forming, seamed wide-span assemblies, and custom perforation patterns. All mesh can be supplied in sheets, rolls or fabricated panels to suit installation methods.
